10K vs 20K vs 30K Waterproof Fabric: Complete OEM Technical Guide for Outdoor Jacket Brands
Introduction: Why Waterproof Fabric Ratings Matter in Real OEM Production
In outdoor jacket manufacturing, waterproof ratings such as 10K, 20K, and 30K are not marketing terms. They are engineering indicators that directly affect production decisions, cost structure, and final product performance.
At RUINIU, we do not treat waterproof ratings as product descriptions. We treat them as manufacturing constraints that determine fabric selection, seam sealing temperature, bonding pressure, and the overall rejection rate during QC. In real production, most waterproof failures are not caused by the fabric itself, but by mismatched construction systems.
Waterproof Fabric Rating System (Factory Interpretation)
| Rating | Market Perception | Real Production Reality | RUINIU Factory Solution |
|---|---|---|---|
| 10K | Entry-level fabric | Highly sensitive to heat and pressure; risk of membrane damage | Low-temperature seam sealing window & precise heat calibration |
| 20K | Standard outdoor grade | Most stable for OEM production; requires strict tape compatibility | Controlled batch bonding + routine hydrostatic peer-testing |
| 30K | High-performance / expedition | High raw cost and lower yield rate; easily delaminates under standard speed | Slow-speed pneumatic lamination + 100% internal lab batch checks |
What Does 10K / 20K / 30K Actually Mean?

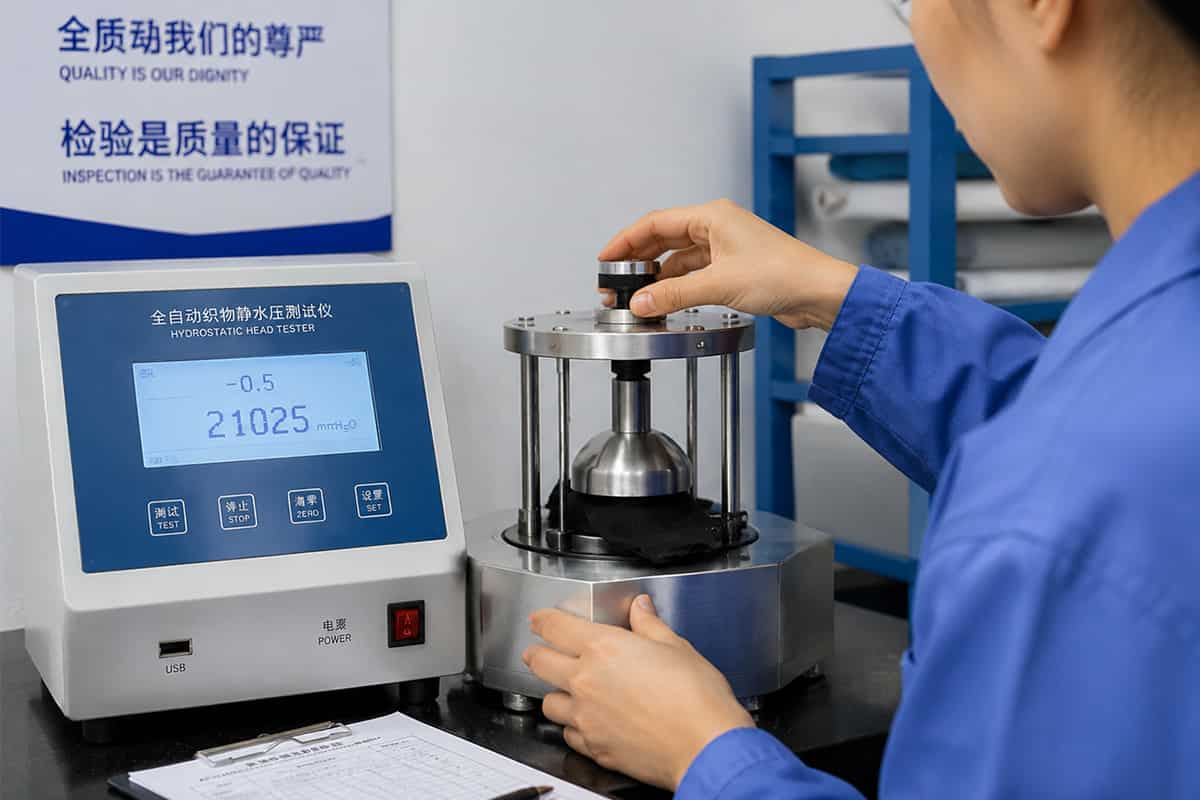

Waterproof performance is measured using the Hydrostatic Head Test (mmH₂O).
10K (10,000mm) → Light rain / urban outdoor use.
20K (20,000mm) → Heavy rain / hiking / ski use.
30K (30,000mm) → Extreme weather / alpine expedition.
But in real manufacturing, the number alone is not enough. We also evaluate coating adhesion stability after heat pressing, membrane reaction under seam sealing pressure, and delamination risk under mechanical stress. A fabric rated 20K can still fail if the bonding system is unstable.
How We Verify Waterproof Fabric in OEM Production
Before any fabric enters bulk production, RUINIU performs internal verification beyond supplier reports.
Our process includes:
Incoming hydrostatic pressure spot testing
Coating uniformity inspection
Seam sealing compatibility test
Peel strength evaluation after lamination
If a material fails in real bonding conditions, we reject it—even if lab reports show compliance. This is where many “qualified showroom fabrics” fail in actual production environments.
How Fabric Rating Affects Jacket Construction
Different waterproof levels require completely unique production logic:
10K Fabric – Urban & Lightweight Jackets
Used for: City rainwear, travel jackets.
Factory characteristics: Simplified seam sealing routes, lower bonding temperature, higher breathability focus. Designed for comfort, not extreme protection.
20K Fabric – Core Outdoor Products
Used for: Hiking jackets, ski jackets, performance outerwear.
Factory characteristics: Full seam sealing required, strict temperature control, mandatory batch testing. This is the most commercially stable OEM category. For international shipments, this is best paired with certified eco-coatings—see our PFAS-Free DWR & OEKO-TEX Standards to see how we maintain 20K ratings legally.
30K Fabric – Expedition Grade
Used for: Alpine gear, extreme outdoor conditions.
Factory characteristics: Multi-layer lamination, slower production speed, higher rejection rate. Not all factories can stabilize this level of production footprint.
Why Waterproof Jackets Still Leak (Factory Reality)
In production, waterproof failure is rarely caused by fabric rating alone. The real causes are seam tape bonding instability, inconsistent stitching density (SPI), and improper heat-pressure balance.
Even a premium 30K fabric will leak if:
Seam tape temperature fluctuates across curved zones (like armpits or hoods)
Pneumatic pressure distribution is uneven
Needle holes are not fully sealed by the hot-melt adhesive
Waterproof performance is a system, not a material choice.
How We Control Waterproof Stability in Mass Production
Once production begins, we shift from lab testing to process control. We apply batch hydrostatic re-testing, seam sealing temperature curve locking, operator pressure calibration, and random rain simulation tests.
Different fabrics require highly specific machine profiles:
TPU membranes → Narrow, low-temp range to prevent structural melting.
PU coatings → Higher pressure stability to push adhesive into woven structures.
Laminated fabrics → Slower machine run speed for proper glue penetration.
One fixed machine setting does not work for all fabrics.
How Brands Should Choose Waterproof Fabric
From a commercial perspective:
10K → Entry / fashion hybrid products where cost and breathability lead.
20K → Core outdoor product line. Delivers the best balance between raw cost and reliable retail performance.
30K → Flagship technical products for professional end-users.
A common mistake we see small brands make is overusing 30K fabrics. This leads to higher costs and longer production times with no proportional retail advantage.
OEM Manufacturing Insight (RUINIU Perspective)
At RUINIU, waterproof rating is only the starting point. Final product success depends on fabric-system compatibility, seam sealing execution stability, and batch-level QC control. We focus on ensuring the entire waterproof system works consistently from the sample stage to the bulk shipment.
Sample Lead Time: 7–10 days once material specs are locked.
Factory Transparency: As an experienced clothing manufacturer in China, we welcome pre-production laboratory testing.
Conclusion
10K, 20K, and 30K waterproof fabrics represent three different levels of engineering complexity in outdoor jacket manufacturing.
The real challenge is not choosing the highest rating, but selecting the correct system that matches your product positioning, your production budget, and your factory's seam sealing stability. At RUINIU, we validate every fabric system before production begins to ensure consistent waterproof performance across all orders.
